Tirvit rope tensioners
The Tirvit is hand-operated pulling wire tensioner. It is versatile, portable and multi-purpose, for
both pulling and tensioning. The originality of the Tirvit universal wire tensioner, is the principle
of operation directly on the wire rope, which passes through the mechanism rather than being
reeled onto a drum of a hoist or conventional winch. The pull is applied by means of two pairs
of self-energised jaws which exert a grip on the wire rope in proportion to the load being pulled.
An operating lever transmits the effort to the jaw mechanism to forward movement of the wire rope.
The universal wire tensioner, is fitted with a wire rope or chain, depending on the model, so that
it can be secured quickly to any suitable anchor point.
Fast and easy tensioning of wire ropes such as electric transport cables, telephone cables and fence assembly. Also suitable for pulling loads. Not suitable for lifting.
- Complete with mounting chain
- Suitable for tensioning wire ropes
- Suitable for pulling loads

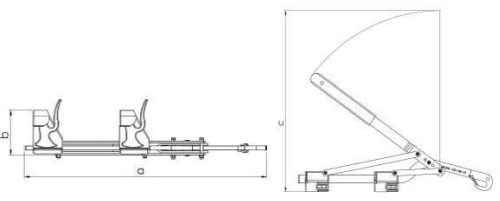

| Model | Traction Resistance (kg) | Wire Rope Diameter (mm)) | A | B | C | Rope Travel Forward/Reverse (mm) | Weight (kg) | Weight Without Anchor Cable | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| F2 | 400 | 6-8 | 535 | 88 | 653 | 140 | 4 | 3,6 | 1029 |
| F3 | 600 | 7-15 | 625 | 110 | 730 | 135 | 5,2 | 4,75 | 1039 |
| F4 | 800 | 14-18 | 625 | 115 | 720 | 145 | 6,2 | 5,7 | 1049 |
Tirvit tension clamp
Tension clamp with shackle
- Complete with bow shackle
- Spring-loaded wire rope clamping jaws
- Lightweight enclosure
| Model | Traction Resistance kg) | Wire Rope Diameter (mm) | Product Code |
|---|---|---|---|
| G2 | 400 | 6 - 8 | 1018 |
| G3 | 600 | 7 - 15 | 1028 |
| G4 | 800 | 14 - 18 | 1038 |
